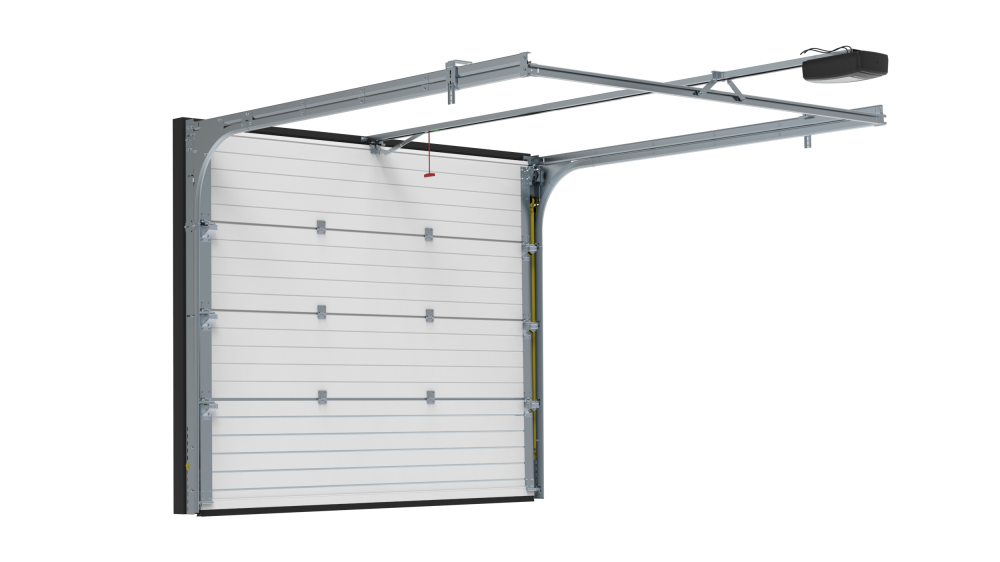

Like the G100, the TS100 track system only requires free head room of 100 mm, but is fitted with extension springs rather than torsion springs. These extension springs are positioned in the vertical track. Thanks to the springs being pre-tensioned, the system can be very quickly installed. The TS100 is supplied standard with a 60 mm black lintel profile as top closure and two suspension profiles to attach the horizontal tracks to the ceiling. Further options are: white coated hinges, a ‘Silent spring’ package, installation material for wall mounting and two extra suspension profiles. The TS100 is capable of handling door weights up to 150 kg.

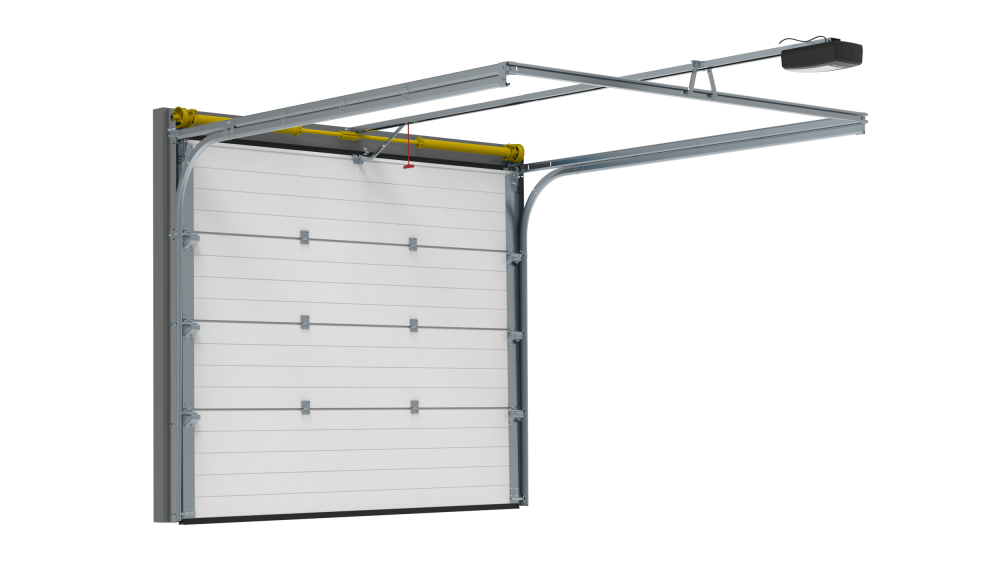

G200
The G200 is the standard residential track system requiring free head room of 200 mm. The torsion springs are located directly above the door. The G200 is supplied standard with a 60 mm black lintel profile as top closure and two suspension profiles to attach the horizontal tracks to the ceiling. Further options are: white coated hinges, tensioning rods, pre-fitted shaft, installation material for wall mounting and two extra suspension profiles. The G200 can accommodate door weights of up to 300 kg.

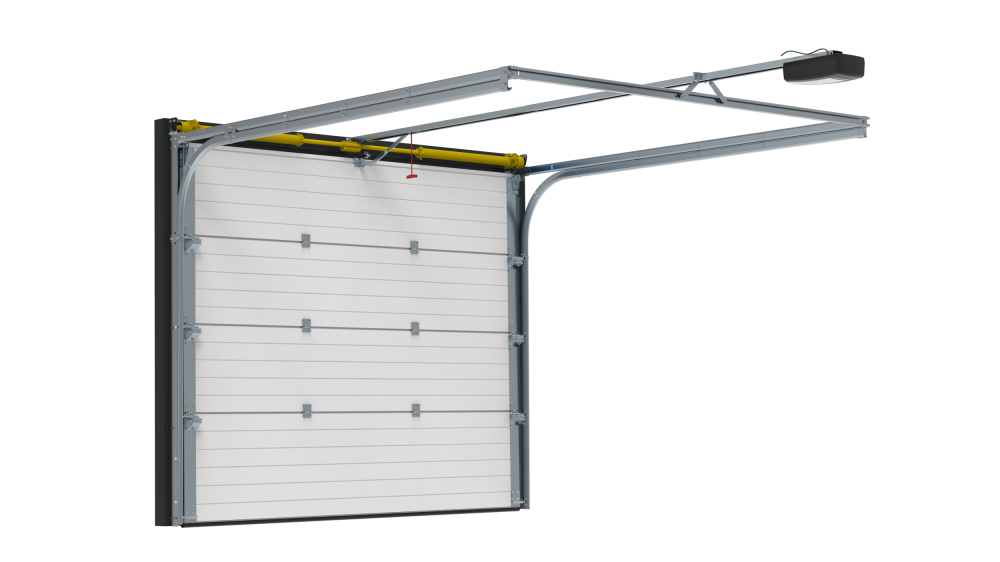

G160
The G160 is a standard track system requiring free head room of 160 mm. The torsion springs are located directly above the door. The G160 is supplied standard with a 60 mm black lintel profile as top closure and two suspension profiles to attach the horizontal tracks to the ceiling. Further options are: white coated hinges, tensioning rods, pre-fitted shaft, installation material for wall mounting and two extra suspension profiles. The G160 can support door weights of up to 165 kg.

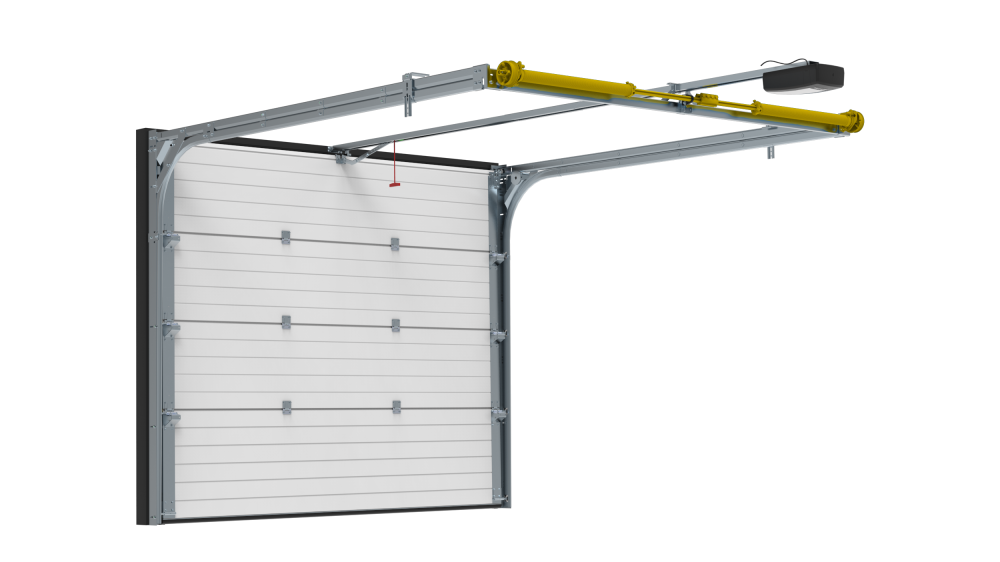

G100
Our G100 track system is just what you need when there is not much room for installation. This system requires only 100 mm of free head room. The torsion springs are fitted to the end of the horizontal track. The G100 is supplied standard with a 60 mm black lintel profile as top closure and two suspension profiles to attach the horizontal tracks to the ceiling. Further options are: white coated hinges, tensioning rods, pre-fitted shaft, installation material for wall mounting and two extra suspension profiles. The G100 can handle door weights of up to 300 kg.

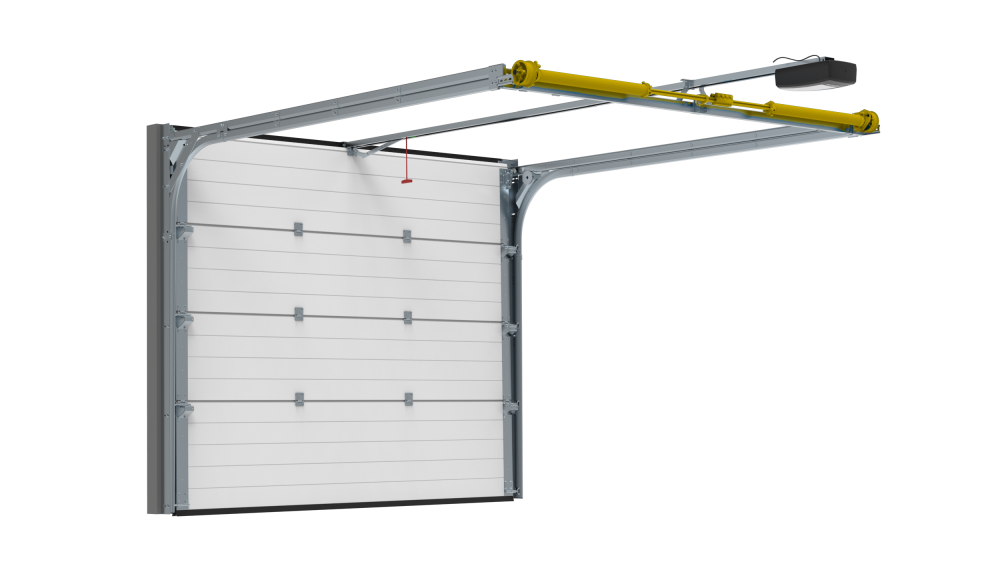

R60
The R60 is ideally suitable as a practical alternative or replacement for old, uninsulated up-and-over garage doors. We can install the system without any major structural changes being required. The R60 requires only 60 mm of free head room and is only available in a motorised version. The torsion springs are fitted to the end of the horizontal track. The R60 is supplied standard with a 60 mm black lintel profile as top closure and two suspension profiles to attach the horizontal tracks to the ceiling. Further options are: white coated hinges, tensioning rods, pre-fitted shaft, installation material for wall mounting and two extra suspension profiles. The R60 can handle door weights of up to 300 kg.
